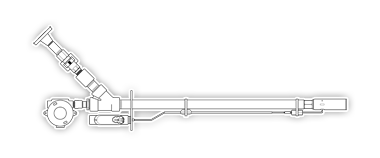

JM-1SF-HEI (HE Igniter)

JM-1SF-HEI (HE Igniter)

Pilot Design Information

Pilot Model: JM-1S HEI
Pilot Ignition Method: High Energy Electric Ignition
Pilot Heat Release: 90,000 Btu/hr @ 10 psig with natural gas
Pilot Operating Pressure Range: 5 psig to 15 psig
Pilot Fuel Range with single tip: 100% propane to 90% hydrogen
Pilot Tip Material: HK or 310 SS
Pilot Flame Shield: HK or 310 SS
Pilot Spud: 304 SS
Pilot Mixer Material: Carbon Steel (Optional 304 SS or 316 L)
Pilot Riser Material: Carbon Steel (Optional 304 SS or 316L SS)
Flame Rod Provided: Required
Flame Rod Material: Kanthal
Flame Rod Insulation: Insulated to prevent moisture exposure
Ignition Rod Provided: Not Applicable
Ignition Rod Material: 310 SS
Ignition Requirements: 110v/220v
