AC Combination Round Flame Burner

AC Combination Round Flame Burner

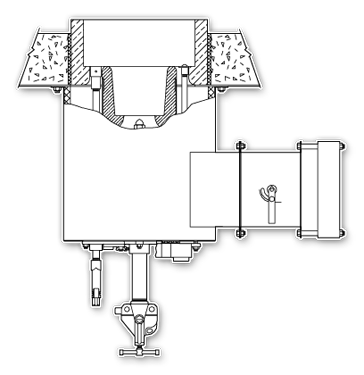

Burner Description:

The Zeeco AC round flame combination oil and gas burner.

Burner Design Features:

  • Stable flame over a wide range of conditions
  • High Turndown of 5:1 or greater for most cases
  • No stabilization metal used in the burner throat
  • Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
  • Reasonable cost and great value
  • Combustion air dampers are controlled by gears for precise control
  • Bearings are used for the combustion air damper shafts for smooth, precise operation
  • Configurations available: plenum mounted or individual wind-box
  • 310 Stainless Steel (Type HK) gas tips

Burner Design Information

Burner Model: AC Combination Oil & Gas
Fuels: Combination Oil & Gas
Description: Round Flame Combination
NOx Reduction Method: None
Predicted NOx Emissions Range (Natural Draft) with gas fired: 90 ppmv to 150 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
gas fired:
120 ppmv to 250 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 2 oil fired: 120 ppmv to 250 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 2 oil fired:
150 ppmv to 300 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 6 oil fired: 250 ppmv to 400 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 6 oil fired:
300 ppmv to 450 ppmv
Combustion Air Induction: Natural, Forced, Induced & Balanced Draft
Mounting Options: Up-fired and Side-fired
Natural Draft Heat Release Range: 1 MM to 20 MM Btu/hr [0.293 to 5.860 MW]
Forced Draft Heat Release Range: 1 MM to 50 MM Btu/hr [0.293 to 14.65 MW]
Turndown: 5:1 gas & 3:1 oil
Typical Excess Air Range: 10% to 25%
