RWFD Forced Draft Radiant Wall Burner

RWFD Forced Draft Radiant Wall Burner

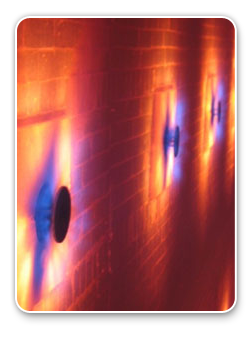

View our gallery to see Zeeco RWFD burners in operation. The RWFD burner does not pre-mix the gas and the combustion air together so there is no possibility of flashback during normal operating conditions.

Burner Description:

The Zeeco RW burner is a forced draft radiant wall burner.

Burner Design Features:

  • Stable flame over a wide range of conditions
  • Turndown of 10:1 or greater for most cases
  • No flashback
  • Low NOx emissions
  • Long service life
  • Operations with a wide range of fuels
  • 304 Stainless Steel spun venture / mixer
  • 310 Stainless Steel (Type HK) gas tip

Burner Design Information

Burner Model: RWFD Forced Draft, Radiant Wall Burner
Fuels: Gas Only
Description: Forced draft, radiant wall burner
NOx Reduction Method: Flue Gas Entrainment
Predicted NOx Emissions Range: 18 ppmv to 120 ppmv
Combustion Air Induction: Forced & Balanced Draft
Mounting Options: Side-fired
Natural Draft Heat Release Range: 0.25 MM to 3.5 MM Btu/hr [0.073 to 1.026 MW]
Turndown: 10:1
Typical Excess Air Range: 10% to 15%
