JM-1SF Manual Ignition Pilot Assembly with Flame Rod

Pilot Description

The Zeeco JM-1SF Manual Ignition Pilot Assembly with Flame Rod is a high stability design designed to operate with a single tip from 100% propane to 90% hydrogen.

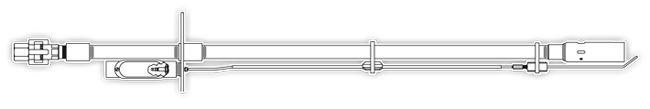

JM-1SF Manual Ignition Pilot Assembly with Flame Rod

Pilot Design Information

Pilot Model: JM-1SF
Pilot Ignition Method: Manual Ignition
Pilot Heat Release: 90,000 Btu/hr @ 10 psig with natural gas
Pilot Operating Pressure Range: 5 psig to 15 psig
Pilot Fuel Range with single tip: 100% propane to 90% hydrogen
Pilot Tip Material: HK or 310 SS
Pilot Flame Shield: HK or 310 SS
Pilot Spud: 304SS
Pilot Mixer Material: Carbon Steel (Optional 304SS or 316L)
Pilot Riser Material: Carbon Steel (Optional 304SS or 316L SS)
Flame Rod Provided: Required
Flame Rod Material: Kanthal
Flame Rod Insulation: Insulated to prevent moisture exposure
Ignition Rod Provided: Not Applicable
Ignition Rod Material: Not Applicable
Ignition Requirements: Not Applicable
