JM-1S-EF Electric Ignition Pilot Assembly with Flame Rod

Pilot Description

The Zeeco JM-1S-EF Electric Ignition Pilot Assembly with Flame Rod is a high stability design designed to operate with a single tip from 100% propane to 90% hydrogen.

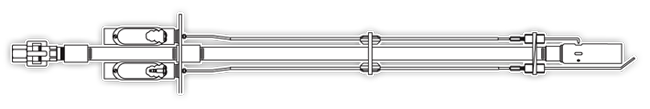

JM-1S-EF Electric Ignition Pilot Assembly with Flame Rod

Pilot Design Information

Pilot Model: JM-1S-EF
Pilot Ignition Method: Electric Ignition
Pilot Heat Release: 90,000 Btu/hr @ 10 psig with natural gas
Pilot Operating Pressure Range: 5 to 15 psig
Pilot Fuel Range with single tip: 100% propane to 90% hydrogen
Pilot Tip Material: HK or 310 SS
Pilot Flame Shield: HK or 310 SS
Pilot Spud: 304 SS
Pilot Mixer Material: Carbon Steel (Optional 304 SS or 316 L)
Pilot Riser Material: Carbon Steel (Optional 304 SS or 316L)
Flame Rod Provided: Required
Flame Rod Material: Kanthal
Flame Rod Insulation: Insulated to prevent moisture exposure
Ignition Rod Provided: Required
Ignition Rod Material: 310 SS
Ignition Requirements: 6,000 Volts @ 160 VA
