CLSF Min-Emissions Round Flame Combination Burner

CLSF Min-Emissions Round Flame Combination Burner

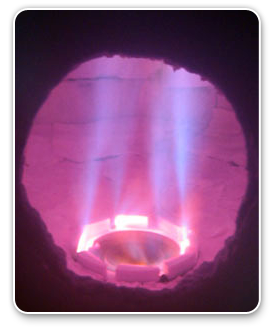

The picture in the gallery is Zeeco’s CLSF Min-Emissions combination burner in operation. The reduced NOx emission from oil firing is achieved by “Pseudo Staging” of oil by our CB oil gun design. The result is a burner that can achieve very low NOx emissions with a great turndown. For natural draft applications, the burner is offered with a regen tile for oil stabilization. For forced draft applications, the burner is offered with a regen tile, cone or swirler depending upon the combustion air pressure drop available and customer requirements.

Burner Description:

The Zeeco CLSF Minimum Emissions, combination oil & gas burner is an ultra-low emissions burner designed to provide a round flame shape for process type heater applications.

Burner Design Features:

  • Round flame, combination oil & gas burner design
  • Single damper design makes the burner easier to control the excess air though the correct locations within the burner design
  • NOx reduction method: Internal Flue Gas Recirculation (IFGR) by mixing the gas fired from the secondary gas port with the inert products of combustion which lowers thermal NOx production
  • Combustion air induction: natural, forced, induced & balanced draft, or turbine exhaust
  • Mounting options: up-fired, side-fired and down-fired
  • Stable flame over a wide range of conditions
  • No stabilization metal used in the burner throat
  • Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
  • Compact design makes this burner a great choice for retrofit applications
  • Compact flame shape
  • Great heat flux profile
  • Reasonable cost and great value
  • Combustion air is controlled by gears for precise control
  • Bearings are used for the combustion air dampers for smooth, precise operation
  • Configurations available: plenum mounted or individual wind-box

Burner Design Information

Burner Model: Round Flame, Combination Oil & Gas, Ultra-Low Emissions
Fuels: Combination Oil & Gas
Description: Round Flame Burner
NOx Reduction Method: Ultra-Low Emissions
Predicted NOx Emissions Range (Gas Fired): 15 ppmv to 48 ppmv (30 mg/Nm3 to 100 mg/Nm3)
Predicted NOx Emissions Range (Oil Fired): 80 ppmv to 244 ppmv (160 mg/Nm3 to 500 mg/Nm3)
Combustion Air Induction: Natural, Forced, Forced Air Pre-Heat, & Turbine Exhaust
Mounting Options: Floor, Sidewall, End-Wall, & Roof
Forced Draft Combustion Air Pressure Drop 0.5" to 8" (12 to 203 mm) H2O
Forced Draft Heat Release Range: 1 to 50 MM Btu/hr [0.293 to 14.650 MW]
Turndown: 5:1 Gas & 3:1 Oil
Design Excess Combustion Air: 10% to 25% for Most Cases
Natural Draft Combustion Air Pressure Drop: 0.2" to 1" (5 to 25 mm) H2O
Natural Draft Heat Release Range: 0.25 MM to 20 MM Btu/hr [0.073 to 5.86 MW]
Burner Data Sheet
Microsoft Excel (.xls) Format | 180 KB
