FK Low Emissions Flat Combination Flame Burner

FK Low Emissions Flat Combination Flame Burner

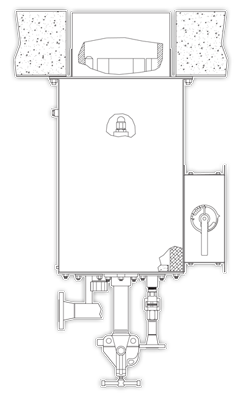

Burner Description:

The Zeeco FK Staged Air Low Emissions Burner is a flat flame combination oil and gas burner.

Burner Design Features:

  • Stable flame over a wide range of conditions
  • High turndown of 5:1 or greater for most cases
  • No stabilization metal used in the burner throat
  • Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
  • Reasonable cost and great value
  • Combustion air dampers are controlled by gears for precise control
  • Bearings are used for the combustion air damper shafts for smooth, precise operation
  • Configurations available: plenum mounted or individual wind-box
  • Mounting configurations: Horizontally mounted, vertically fired and vertically fired
  • 310 Stainless Steel (Type HK) gas tips

Burner Design Information

Burner Model: FK Combination Oil & Gas Staged Air Burner
Fuels: Combination Oil & Gas
Description: Flat Flame Low Emissions Combination
NOx Reduction Method: Staged Air
Predicted NOx Emissions Range (Natural Draft) with gas fired: 50 ppmv to 95 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with gas fired: 80 ppmv to 160 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 2 oil fired: 80 ppmv to 120 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 2 oil fired:
120 ppmv to 180 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 6 oil fired: 160 ppmv to 220 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 6 oil fired:
215 ppmv to 280 ppmv
Combustion Air Induction: Natural, Forced, Induced & Balanced Draft
Mounting Options: Up-fired and Horizontally Mounted Vertically Fired
Natural Draft Heat Release Range: 1 MM to 14 MM Btu/hr [0.293 to 4.102 MW]
Forced Draft Heat Release Range: 1 MM to 14 MM Btu/hr [0.293 to 4.102 MW]
Turndown: 5:1 gas & 3:1 oil
Typical Excess Air Range: 10% to 25%
