RW Premixed Radiant Wall Burner

RW Premixed Radiant Wall Burner

Burner Description:

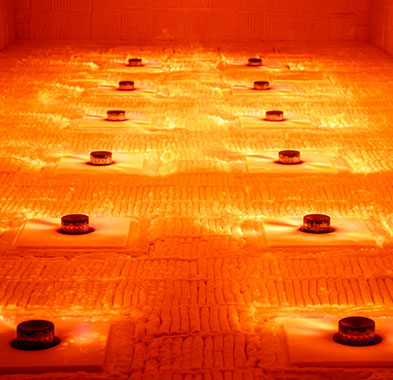

The Zeeco RW burner is a premixed radiant wall burner.

Burner Design Features:

  • Stable flame over a wide range of conditions
  • Turndown of 3:1 or greater for most cases
  • Reduced flashback
  • Long service life
  • Operations with a wide range of fuels
  • 304 Stainless Steel spun venture / mixer
  • 310 Stainless Steel (Type HK) gas tip

Burner Design Information

Burner Model: RW Radiant Wall Burner
Fuels: Gas Only
Description: Premixed radiant wall burner
NOx Reduction Method: None
Predicted NOx Emissions Range (Natural Draft): 35 ppmv to 80 ppmv
Combustion Air Induction: Natural & Induced Draft
Mounting Options: Side-fired
Natural Draft Heat Release Range: 0.25 MM to 1.8 MM Btu/hr [0.073 to 0.527 MW]
Turndown: 3:1
Typical Excess Air Range: 10% to 15%
