Zeeco Staged Multi-Point Flare

Staged Multi-Point

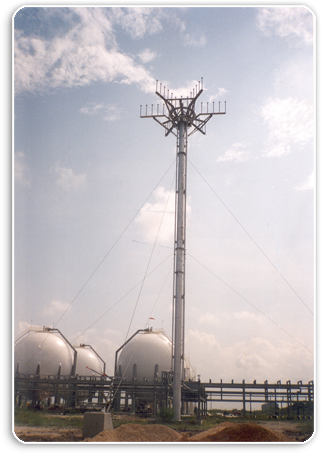

The Zeeco Elevated Staged Multipoint flare is fed from a manifold which distributes the flow of flare gas to individual branches (stages) each containing one or more burner tips. Control valves direct the flow of flare gas to each stage based on upstream pressure.

Flares Data Sheet
PDF Format | 2.1 MB
