Ground / Enclosed

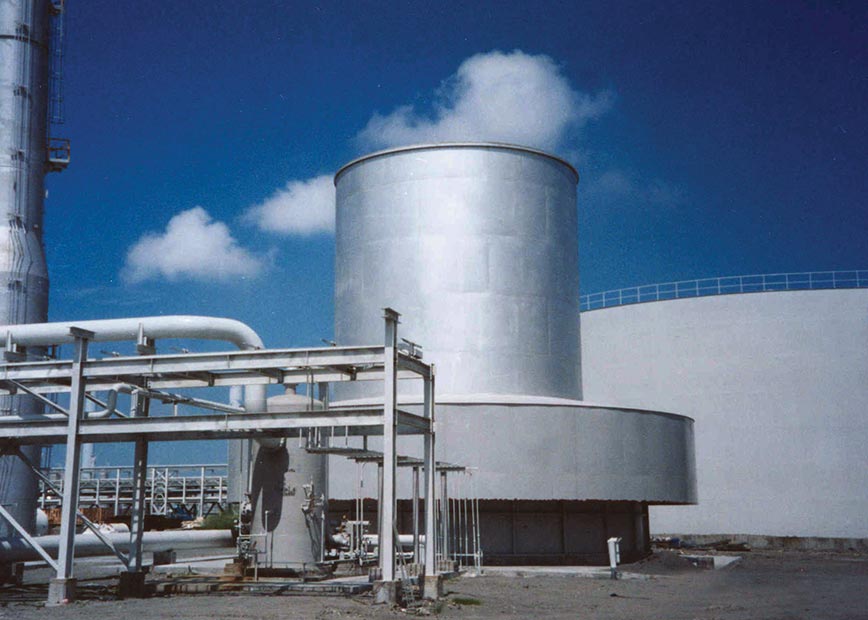

Enclosed ground flare

Zeeco’s Enclosed Ground Flare (EGF) systems use an efficient burner design to provide smokeless operation inside of a combustion chamber that completely conceals the flare flame.  The combustion chamber is refractory lined to provide long service life and significantly reduced noise levels. EGF systems are typically installed in crowded areas of a plant, in close proximity to other processing equipment. Zeeco’s design allows operation of these units in tight spaces while keeping operators safe.

A few of the advantages of Zeeco’s Enclosed Ground Flare system are listed below:

• Clean, smokeless burning for a range of flare gas compositions
• No radiation outside the unit
• No visible emissions
• Low noise
• No air or steam assist required
• Suitable for a large range of gas pressures
• Proven field designs
• Unlimited turndown capability
• High efficiency combustion with high destruction efficiency
• Safe design with low maintenance and long service life
• Critical components are easily maintainable outside of the unit while still in operation
• Low operating costs

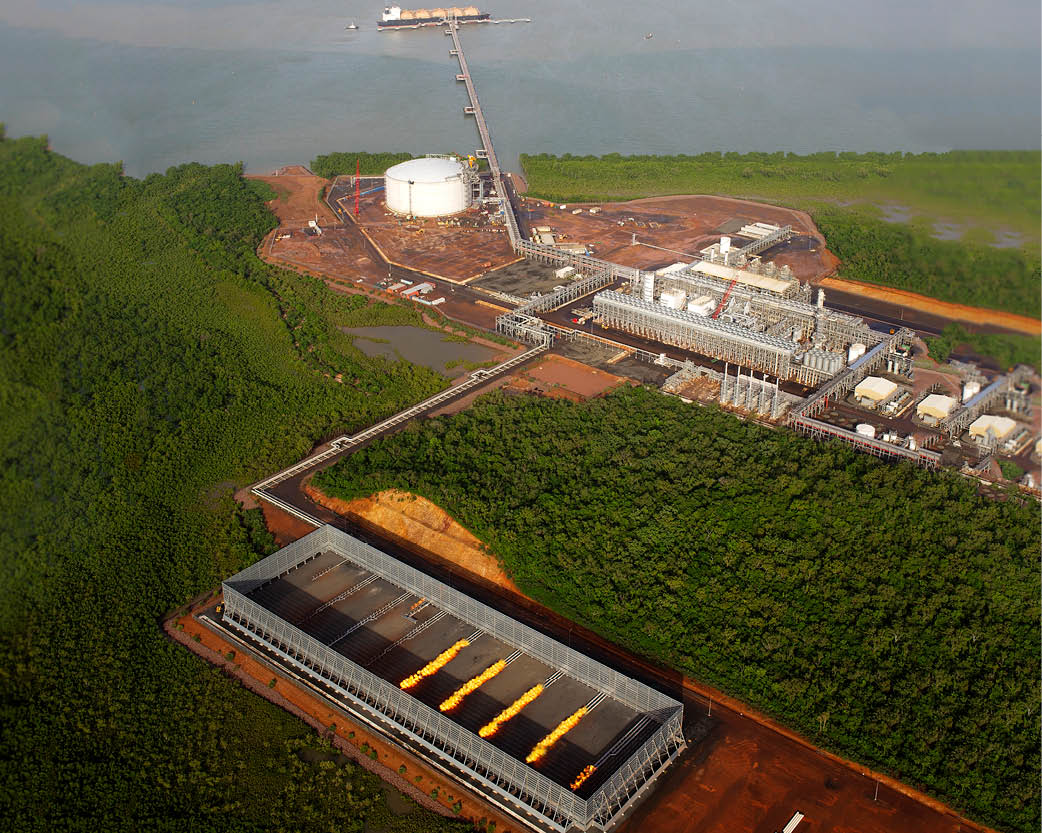

multi-point ground flare

When highly variable volumes of waste gas must be flared smokelessly, but exceed the practical design limits of a single steam assisted or air assisted flare, our multi-point ground flare may be the perfect solution. ZEECO multi-point ground flares are designed and engineered to meet specific process requirements for pressure, flow, radiant heat, noise, and flame visibility control. Whether your plant is near a neighborhood, airport, or environmentally sensitive area such as a wildlife habitat, the seasoned team at Zeeco will assess, design, model, engineer, produce, and install a low-profile multi-point ground flare system that protects your plant, employees, reputation, and the environment.

Design Features

• Very high smokeless capacity
• Long flare life
• Minimized utility requirements
• High turndown
• Steam/Air assist options available for low-pressure situations

Typical Applications

• Plants in densely populated, residential, or environmentally sensitive areas
• Very high capacity flare systems where elevated flares are impractical
• Near airports where elevated flares are unsuitable
• Smokeless flaring for ethylene, propylene, and butadiene
• LNG plants and production
• Petrochemical facilities
