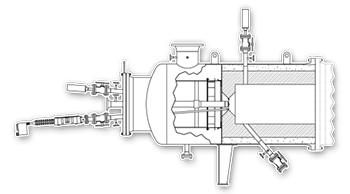

HVW High-Intensity Burner

HVW High-Intensity Burner

Burner Description:

The Zeeco HVW High-Intensity burner is designed to burn acid or toxic gases.

Burner Design Features:

  • Two fuel connections: One for refinery fuel gas and one for the acid or toxic gases
  • Stable flame over a wide range of conditions
  • Turndown of 3:1 or greater for most cases
  • No flashback
  • Long service life
  • Operations with a wide range of fuels
  • 310 Stainless Steel (Type HK) gas tips for refinery fuel gas, acid or toxic gases

Burner Design Information

Burner Model: HVW High-Intensity Gas Burner
Fuels: Refinery fuel gas (RFG) and acid or toxic gases
Description: Acid or toxic gas burner
NOx Reduction Method: None
Combustion Air Induction: Natural or forced draft
Mounting Options: Horizontal, Vertical Up, Vertical Down
Heat Release Range: 1 MM to 125 MM Btu/hr [0.073 to 36.625 MW]
Turndown: 3:1
Typical Excess Air Range: sub stoich. to 15%
