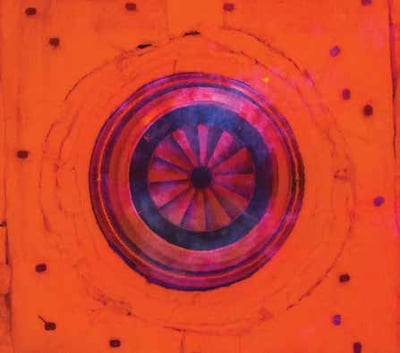

Free Jet Ultra Low NOx Package Burner

Zeeco's Free Jet Ultra-Low NOx Package Burner takes combustion innovation to the next level with big performance in a compact package.

Lower Emissions and Advanced Technology.

Ideal for generating heat and steam in commercial, institutional, and light industrial applications, the Free Jet burner delivers dramatically lower emissions and the engineering technology that can only come from the global authority in combustion and environmental solutions—Zeeco.



Burner Features and Benefits

  • Compact and versatile design for easy installation
  • Safe, reliable, easy to set up, simple to maintain
  • Patented NOx emission reduction technology
    – 30ppm (58mg) NOx without FGR
    – 9ppm (17mg) NOx with FGR
  • Fires natural gas, LP gas, and oil
  • Efficient performance with excess air range from 10% to 20%
  • High turndown, quiet operation
  • Complete integrated system with automatic flame monitoring and shut-off, control panel, and combustion air fan



Standard Equipment

  • Blower/Motor
  • Combustion Air Proving Switch
  • Ignition Transformer with pilot assembly
  • Blower Inlet Silencer



Optional Equipment

  • All UL listed Burner Management Systems
  • O2 Trim
  • Variable Frequency Drive (VFD)
  • Remote control panels
  • Air Compressor for air atomized oil
  • Pilot Train - includes regulator, solenoid valve, and manual valve
  • Main Fuel Train - includes ventless regulator, ventless dual block main gas shutoff valves, high and low pressure switches, two manual gas valves
  • Burner Management System (BMS) Siemens LMV51 or Autoflame Mini Mark 8
  • NEMA 1 Control Panel with Power On switch and indicator lights for power, pilot, main flame, and flame failure
  • Parallel Positioning System with air and fuel actuators

Burner model: Free Jet Heat release range: 4.2 MMBtu/hr to 29.4 MMBtu/hr (1.2 MW to 8.6 MW)
Fuel Gas: Natural Gas, LPG, or other upon request
Fuel Liquid: #2 to #6 oil
Turndown: 10:1 on gas, 8:1 on oil
Excess air range:

10% to 20%
30ppm (58mg) NOx reduction method: staged gas (no FGR)
9ppm (17mg) NOx reduction method: staged gas with FGR

Blower mounting options: above or floor mounted
Burner mounting options: Horizontal, Vertical, Up, or Down Firing

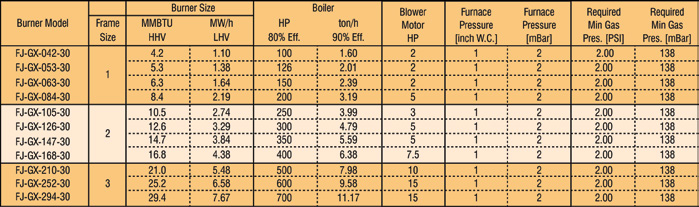

Free Jet Ultra Low NOx Package Burner chart
