The ZEECO® GLSF Free Jet® burner is a next-generation ultra-low emissions round flame burner.
Technology

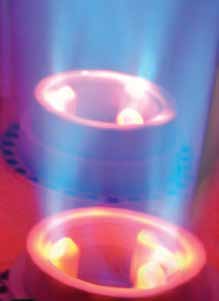

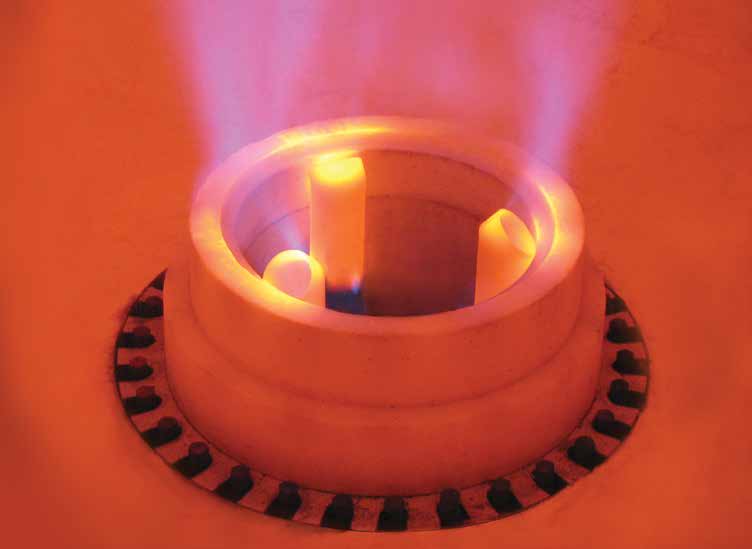

The photo above shows a GLSF Free Jet round flame burner in operation. This patented burner design uses the Free Jet method of mixing the fuel gas ejected from the gas tips with the surrounding inert products of combustion which dramatically lowers thermal NOx production. In addition to superior NOx reduction performance, the Free Jet design offers a superior turndown, typically 10:1 or greater. Each tip only has one large firing port.
Design Features
• Stable flame over a wide range of conditions
• High turndown of 10:1 or greater for most cases
• No stabilization metal used in the burner throat
• Tips have only a single firing port and do not require a small ignition port
• Low maintenance cost since tip mass is small and exposed into firebox less than 1” (25 mm)
• Low maintenance cost since the tips do not have small ignition ports which are prone to plug
• Compact design makes this burner an ideal choice for retrofit applications
• Low probability of flame interaction since the burners are smaller and gas is not swirled
• Superior heat flux profile
• Great value
• Combustion air is controlled by gear-driven dampers for precise control
• Bearings are used for the combustion air dampers for smooth, precise operation
• Configurations available: plenum mounted or individual windbox
• 304 stainless steel fuel gas risers
• 310 stainless steel (type HK) gas tips
