Zeeco's GO-Mini Package Burner takes combustion innovation to the next level with big performance in a compact package.
Bigger Performance. Better Results.
Ideal for firetube, watertube, cast iron boilers, and for generating heat and steam in commercial, institutional, and light industrial applications, the GO-Mini burner delivers quiet, stable combustion and the engineering technology that can only come from the global authority in combustion and environmental solutions—Zeeco.
Burner Features and Benefits
- Compact and versatile design for easy installation
- Safe, reliable, easy to set up, simple to maintain
- Quiet operation with typical noise levels below 85dBa
- Fires natural gas and propane gas
- Up to 10:1 Turndown
- Direct spark ignition system
- Complete integrated system with automatic flame monitoring and shut-off, control panel, fuel control, and combustion air fan
- Integrated PWM signal input for full speed air modulation
Standard Equipment
- Blower/Motor
- Burner Management System (BMS) Siemens LMV3 or AutoFlame Mini Mark 8
- NEMA 1 Integrated Control Panel with Power On switch and indicator lights for power, pilot, main flame, and flame failure
- Parallel Positioning System with fuel actuators
- Fuel control (BV) valves with servo motors
- Air control via PWM signal
- Combustion Air Proving Switch
- Ignition Transformer with direct spark ignition assembly
- Hinged Blast Tube
- Main Fuel Train - includes ventless regulator, ventless dual block main gas shutoff valves, high and low pressure switches, two manual gas valves

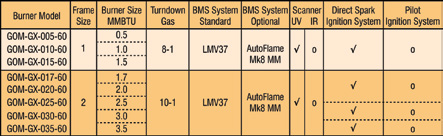

Burner model: GO-Mini
Heat release range: 0.5 MMBtu/hr to 3.5 MMBtu/hr (0.15 MW to 1.03 MW)
Fuel Gas: Natural Gas, LPG, or other upon request
Turndown: up to 10:1
Excess air range: 10% to 25%
Expected emissions levels: 60ppm (116mg) NOx at 15% excess air
Mounting options: Horizontal, Vertical, Up, or Down Firing
