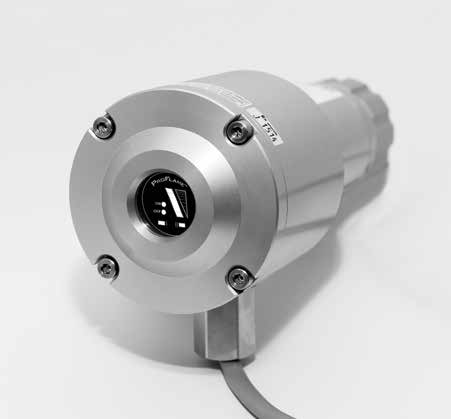

pro flame scanner model zpf 110

The ZEECO® ProFlame™ integrated flame scanner revolutionizes the industry by providing reliable flame detection and instant flame status for safer operation. Easy to configure, simple to set up, the Model ZPF-110 (II 2G EExd IIC T6) is uniquely designed for use in Zone 1 hazardous areas.

Design Features and Benefits

  • Compact and exceptionally reliable
  • State-of-the-art digital signal processing for easy flame analysis
  • Easily configurable frequency and gain settings for simple set-up
  • Intuitive display to assist in troubleshooting
  • Dual signal channel with electronic self-check for SIL3 applications
  • Aiming feature reduces commissioning time when sighting the flame scanner
  • Durable housing for a variety of operating environments
  • Low power consumption with a 24V dc supply
  • Reliable 4-to-20 mA flame intensity output

Operating Environment

  • Temperature: -4°F (-20°C ) to 149°F (+65°C)
  • Relative humidity: 0% to 99.5% non-condensing
  • Environmental protection rating: IP 66, NEMA 4X
  • Vibration fatigue limit: 4 g (function tested to 5 g)
  • Weight: 4.2 lbs (2.0 kg)
  • Housing material: aluminum, brushed finish
  • Cable: integral 8 conductor cable, 20' (6m) long
  • Mounting Nipple: 1" NPT M, integral sealing
    window and noise/heat barrier*

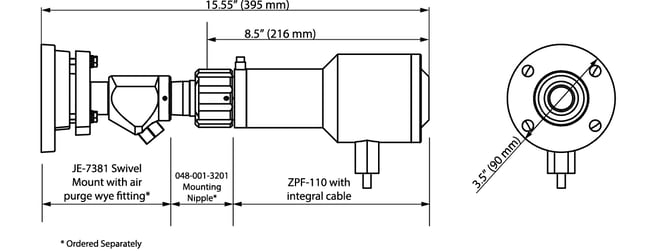

proflame zpf110 diagram
