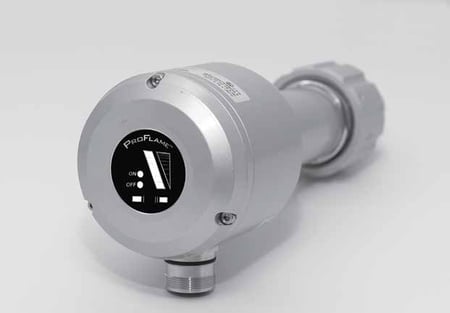

Pro Flame scanner model zpf 120

The ZEECO® ProFlame™ integrated flame scanner revolutionizes the industry by providing reliable flame detection and instant flame status for safer operation. Easy to configure, simple to set up, the Model ZPF-120 (II 3G EEx nA nC IIC T6) is uniquely designed for use in Zone 2 hazardous areas.


Design Features and Benefits

  • Compact and exceptionally reliable
  • State-of-the-art digital signal processing for easy flame
    analysis
  • Easily configurable frequency and gain settings for simple
    set-up
  • Intuitive display to assist in troubleshooting
  • Dual signal channel with electronic self-check for SIL3
    applications
  • Aiming feature reduces commissioning time when
    sighting the flame scanner
  • Durable housing for a variety of operating environments
  • Low power consumption with a 24V dc supply
  • Reliable 4-to-20 mA flame intensity output

Operating Environment

  • Temperature: -40°F (-40°C) to 167°F (+75°C)
  • Relative humidity: 0% to 99.5% non-condensing
  • Environmental protection rating: IP 67, NEMA 4X
  • Vibration fatigue limit: 4 g (function tested to 5 g)
  • Weight: 1.3 lbs (0.6 kg)
  • Housing material: aluminum, painted finish
  • Mounting Nipple: 1” NPT M, integral sealing window and
    noise/heat barrier*
  • Cable: quick disconnect, 8 conductor cable

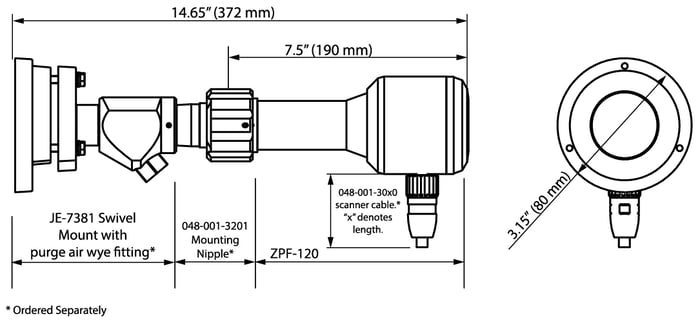

proflame zpf120 diagram
