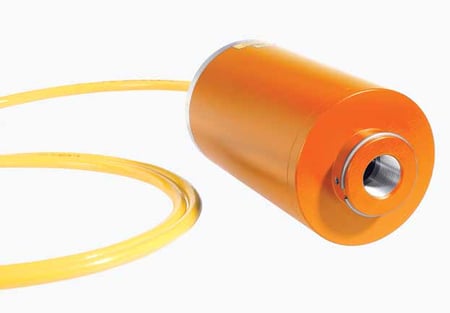

ProFlame™ Utility Grade Flame Scanner 1100 Series

The ZEECO® ProFlame+™ integrated flame scanner revolutionizes the industry by providing reliable flame detection and superior background flame discrimination for safer operation. Easily configurable set points using intuitive PC-based software also allows for in-depth flame analysis. The 1100 Series includes: Model ZPF-1100UV / Model ZPF-1100IR / Model ZPF-1100DS

Design Features and Benefits

• UV or IR models available
• Compact, fully integrated and exceptionally reliable
• State-of-the-art digital signal processing for easy flame analysis
• Easily configurable frequency and gain settings for simple set-up
• Intuitive PC-based software to assist in troubleshooting
• Microprocessor-based with electronic self-check for SIL3 applications
• Durable housing for a variety of operating environments
• Independently adjustable Flame-On and Flame-Off response times: 1-6 sec.
• Reliable 0/4-to-20 mA flame intensity output

Operating Environment

• Temperature: -20°C (-4°F) to +70°C (158°F)
• Relative humidity: 0% to 95% non-condensing
• Environmental protection rating: IP 66, NEMA 4X
• Hazardous rating: II 2 G Ex d IIC T6; II 2 D IP 66 T 80°C
• Weight: 8.8 Lbs (4.0 kg)
• Mounting: 1” NPT F (BSP available)
• Housing material: aluminum, painted finish
• Cable: fixed 10’ (3m) long 8 conductor cable
