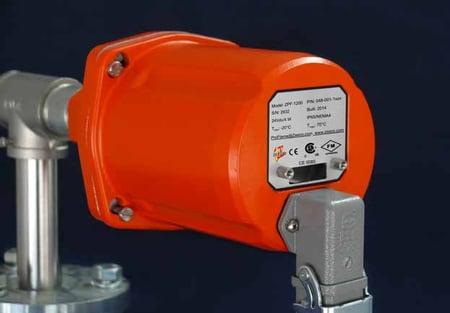

proflame utility 1200

The ZEECO® ProFlame+™ integrated flame scanner revolutionizes the industry by providing reliable flame detection and superior background flame discrimination for safer operation. Easily configurable set points using intuitive PC-based software also allows for in-depth flame analysis. The 1200 Series includes: Model ZPF-1200UV / ZPF-1200IR / Model ZPF-1200DS

Design Features and Benefits

  • UV or IR models available. Front mount or fiber optic available
  • Compact, fully integrated and exceptionally reliable
  • State-of-the-art digital signal processing for easy flame analysis
  • Easily configurable frequency and gain settings for simple set-up
  • Intuitive PC-based software to assist in troubleshooting
  • Microprocessor-based with electronic self-check for SIL3 applications
  • Durable housing for a variety of operating environments
  • Independently adjustable Flame-On and Flame-Off response times: 1-6 sec.
  • Reliable 0/4-to-20 mA flame intensity output

Operating Environment

  • Temperature: -20°C (-4°F) to +70°C (158°F)
  • Relative humidity: 0% to 95% non-condensing
  • Environmental protection rating: IP 66, NEMA 4X
  • Hazardous rating: II 3 G Ex nA IIC T4
  • Weight: 3.3 Lbs (1.5 kg)
  • Mounting: 1” NPT F (BSP available)
  • Housing material: aluminum, painted finish
  • Cable: quick disconnect, 8 conductor cable

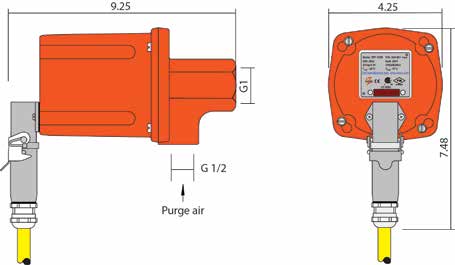

proflame utiliy 1200 diagram Download Brochure
