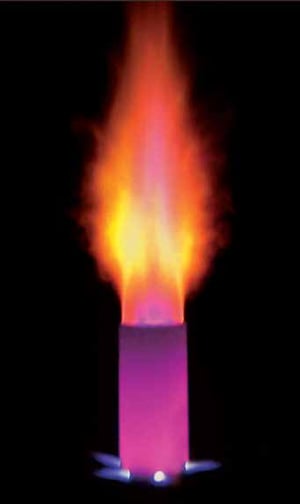

SM series pilot flame

When the industry demanded a pilot with moisture-proof flame detection and integrated high-performance electronics, Zeeco delivered.

SMart design. Solid performance.

As the world leader in combustion solutions, Zeeco understands reliability, durability, and safety are essential for proper pilot operation. Zeeco’s proprietary SM series pilot features a waterproof High Energy Igniter (HEI) for superior ignition performance. Our hermetically-sealed flame rod delivers reliable flame detection, even in the wettest environments. The flame rod is located within the pilot tip to enable the most reliable flame signal and can be operated over a wide range of fuels from 90% hydrogen to 100% propane. The junction box seals and protects all electrical connections from moisture and eliminates the need for environmentally-related electrical maintenance repairs.

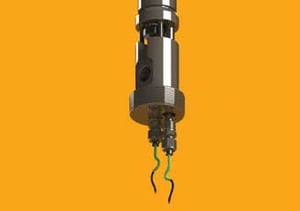

SM series pilot
The SM Series Pilot features an easily removable flame rod with a full length guide tube for precise location. Both the flame rod and ignition probe are removable from the bottom of the pilot without removing the pilot from the burner.

Peace of mind. Every time.

Zeeco’s HEI ignition probes are rated at two joules for first time, every time firing. This technology combines a robust, high energy discharge spark with long lasting performance. Zeeco’s HEI Ignition Probes are superior to other traditional probes in that they will spark even when submerged underwater. We can custom design enclosures that mount to the bottom of the pilot for almost every area classification. In support of Zeeco’s innovative design philosophy, our SM series pilot features a removable spud holder for easy, routine maintenance. We also offer a forced draft version.



Design Features

  • Hermetically-sealed flame rod
  • High Energy Ignition (HEI) rated 2 Joules
  • Integrated explosion-proof enclosure (Optional)
  • Easily removable spud holder
  • Integrated flame relay and ignition module (Optional)
  • Investment cast components
  • Easy to retrofit



Operating Information

  • Heat release: 90,000 Btu/hr (26 kW)
  • 5-15 psig pilot operating range (0.4-1.05 kg/cm2 g)
  • Input power requirements 110v/220v

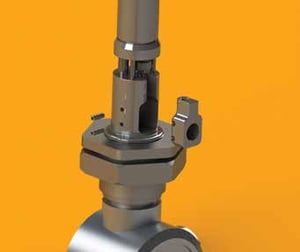

SM series spud holder
Maintenance is easy with the SM Series removable spud holder.
