Revamp of Existing Burners to Increase Efficiency

FCC International Technical Symposium – October 17-18, 2018 – Islamabad, Pakistan

Overview:

• Downfired Primary Reformer Furnace
• European Ammonia Production Facility
• 105 Downfired Burners > 40 years old
• NOx emissions in range of 200-300 mg/Nm³
• Customer wanted to re-use burner windbox and damper

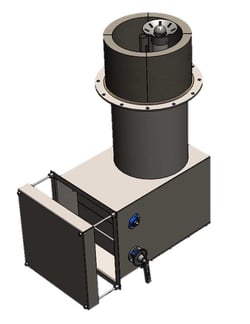

Zeeco Solution

• Supply GB Single-Jet Ultra-Low Emissions Kit:
  • Gas lance / tips
  • Cone
  • Burner Tile
• Retain existing:
  • Windbox
  • Damper / damper controls
  • Pilot
• Guaranteed NOx emissions of 120 mg/Nm³ on Natural Gas
• Design for 10% excess air (≈2.1% O₂ by vol. of dry flue gas)
