AFRC 2018 Industrial Combustion Symposium – Salt Lake City, UT – September 17-18, 2018

graphic

Current Next Generation Steam Flare Technology:

  • Single steam inlet
  • Multiple combustion nozzles – increases the amount of surface area of the gas/steam/air mixture
  • Fewer steam nozzles means lower total cooling steam required



graphic

Current Steam Injection Technology

  • Steam is injected into inlet bell, drawing air in as well
  • Steam and air combination mix with the flare gas inside the overall tube, allowing for thorough mixing prior to tip exit
  • The momentum of the total mixture exiting the tips help pull in air from the outside around each tube

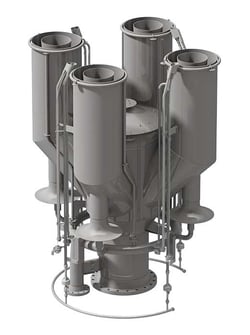

AFRC-SteamForce-HC-3

SteamForce HC Advantages

  • Uses a venturi to pull more air per pound of steam into flare mixing zone
  • Less steam consumption per pound of flare gas (higher efficiency)
  • Does not mix flare gas, steam and air together within the flare nozzle (not premixed)
