Zeeco's GO Ultra-Low NOx Package Burner utilizes staged flame combustion and Internal Flue Gas Recirculation (IFGR) combustion to achieve 30ppm NOx emissions without the use of FGR.
Lower Emissions and Advanced Technology.
The burner is ideal for firetube and watertube boilers, and for generating heat and steam in commercial, institutional, and light industrial applications. The GO burner delivers dramatically lower emissions and engineering technology that can only come from the global authority in combustion and environmental solutions—Zeeco.
Burner Features and Benefits
- Compact and versatile design for easy installation
- Safe, reliable, easy to set up, simple to maintain
- NOx reduction using Staged Flame and Internal Flue Gas Recirculation
- – 30 ppm (58mg) NOx at 15% excess air levels, No FGR
- Fires natural gas and propane gas
- 10:1 High Turndown
- Quiet operation with typical noise levels below 85dBA
- Complete integrated system with automatic flame monitoring and shut-off, control
Standard Equipment
- Blower/Motor
- Burner Management System (BMS) Siemens LMV3/LMV51, or AutoFlame Mini Mark 8
- NEMA 1 Integrated Control Panel with Power On switch and indicator lights for power, pilot, main flame, and flame failure
- Parallel Positioning System with air and fuel actuators
- Air and fuel control (BV) valves with servo motors
- Combustion Air Proving Switch
- Ignition Transformer with pilot assembly
- Hinged Blast Tube
- Blower Inlet Silencer
- Pilot Train - includes regulator, solenoid valve, and manual valve
- Main Fuel Train - includes ventless regulator, ventless dual block main gas shutoff valves, high and low pressure switches, two manual gas valves
Optional Equipment
All UL listed Burner Management Systems
O2 Trim
Variable Frequency Drive (VFD)
Remote Control Panels

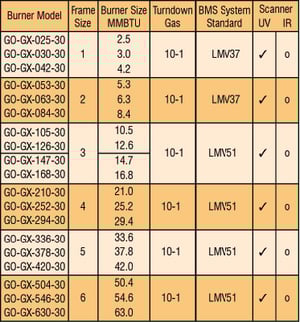

Burner model: GO
Heat release range: 2.5 MMBtu/hr to 63 MMBtu/hr (0.73 MW to 18.5 MW)
Fuel Gas: Natural Gas, LPG, or other upon request
Turndown: up to 10:1
Excess air range: 10% to 20%
Expected emissions levels: 30ppm (58mg) NOx at 15% excess air
Mounting options: Horizontal, Vertical, Up, or Down Firing
