To meet increasingly strict environmental regulations and to promote cleaner energy production at their facilities, many oil, gas, and petrochemical companies upgrade their existing smoking utility flares to provide smokeless flaring of hydrocarbon gases. These companies desire a more positive public profile and longer service life for their flare systems. In most cases, a smokeless flaring upgrade using flare technologies such as steam assist or low-pressure air assist may not be technically or economically feasible. The question is how to retrofit their smoking pipe flares economically and efficiently while minimizing the shutdown time involved with upgrading flare technology.
Enter the High-Pressure Air Assist System (HPAAS). HPAAS technology is the result of years of intensive research and development into solutions for retrofitting existing pipe flares with smokeless technology that was conducted by the world’s largest oil company, Saudi Aramco. Saudi Aramco has successfully installed and operated this technology on dozens of flare systems in Saudi Arabia. Today, the patented HPAAS technology is available to the world market through an agreement between Saudi Aramco and Zeeco, Inc.
How HPAAS Works
HPAAS uses supersonic air injection nozzles to inspirate combustion air at a much higher efficiency than previous air assisted smokeless flaring technology. This combustion air produces smokeless flaring, lower radiation levels, and increased flare tip service life. Compressed air can be provided to the system through the existing plant air supply or from a dedicated air compressor.

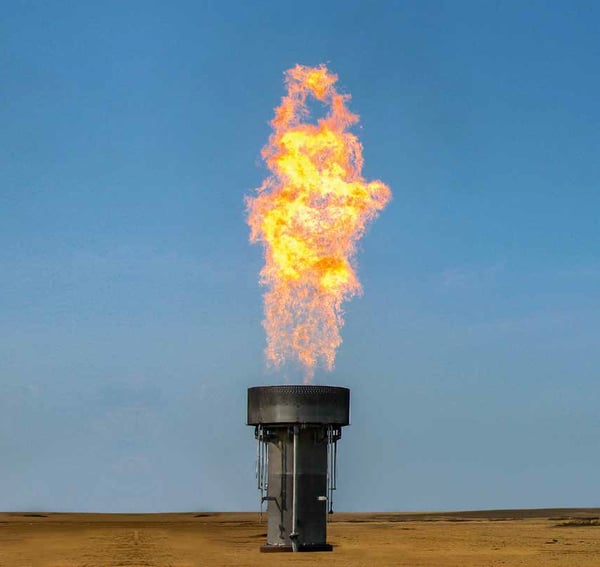

The HPAAS flare tip includes a computer-modeled windshield that provides flame protection while allowing proper combustion airflow via a high-pressure air injection manifold on the flare tip outside of the high-heat zone. The air manifold is fitted with supersonic air nozzles specifically designed to provide maximum air injection while preventing flame pulldown on the flare tip.
Easy Retrofit
The flare system is one of the most important safety devices in hydrocarbon processing facilities. When a flare is taken out of service for maintenance, replacement, or a retrofit, the corresponding plant must also be shut down. Long plant shutdowns for flare system retrofits result in considerable amounts of lost production and revenue for the plant. Other flare retrofits such as low-pressure air assist designs are difficult, time consuming, and costly. The HPAAS flare tips bolt to the existing flare stack and allow for the small air supply line to mount easily to the flare stack with pipe support brackets.
The HPAAS system can be easily retrofitted to an existing flare system in a quick, cost-effective manner, and normal shutdown time for a full HPAAS flare upgrade is typically three days or less. HPAAS systems have been most effective in areas where water for steam is scarce or expensive since the systems do not require steam injection for smoke suppression.
HPAAS Success = A New Joint Venture
HPAAS technology is an ideal solution for a wide variety of applications. For the same reasons, it has been successful for Saudi Aramco and prompted the company to make the patented HPAAS technology available worldwide.
Aramco provided the HPAAS technology exclusively to Zeeco, Inc., the world leader in technology. Headquartered outside Tulsa, Oklahoma, USA, Zeeco specializes in combustion equipment, including flares, industrial burners, and incineration systems.
Advantages of HPAAS
- Easy retrofit to existing flares with minimal
installation time - Adaptable to a wide range of conditions
- No steam or service water required
- Robust design
- Low utility costs for operation
