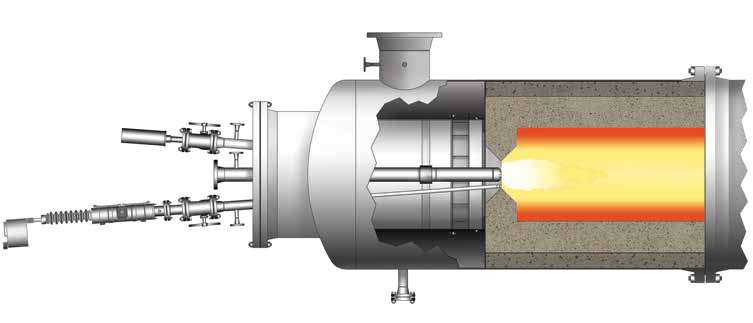

HVW-High-Intensity-Burner

The ZEECO® HVW High-Intensity burner is designed to burn acid or toxic gases.

Technology

The ZEECO HVW burner combines superb mixing characteristics with a short flame length. This reliable, proven technology utilizes the energy of a recirculating vortex to achieve rapid combustion in relatively small volumes with varying levels of air. The high flame temperatures achieved by this technology result in superior waste destruction with no soot formation.



Design Features

  • Two fuel connections: one for refinery fuel gas and one for the acid or toxic gases
  • Stable flame over a wide range of conditions
  • Turndown of 3:1 or greater for most cases
  • No flashback
  • Long service life
  • Operations with a wide range of fuels
  • 310 stainless steel (type HK) gas tips for refinery fuel gas, acid, or toxic gases



Design Information

Burner ModelHVW High-Intensity Gas Burner
FuelsRefinery Fuel Gas (RFG) and Acid or Toxic Gases
DescriptionAcid or Toxic Gas Burner
NOx Reduction MethodNone
Combustion Air InductionForced Draft
Mounting OptionsHorizontal, Vertical Up, Vertical Down
Heat Release Range1 MM to 125 MMBtu/hr [0.073 to 36.625 MW]
Turndown3:1
Typical Excess Air RangeSub Stoich. to 25%
