In 2012, Zeeco successfully installed a Zeeco QFSC Steam Assisted Flare System for LG Chemicals petrochemical plant in South Korea. Zeeco worked closely with the EPC company, LG / Toyo Korea, to ensure the flare’s proper design, full fabrication, field assembly, and erection / start-up for the facility.
Another challenge was to meet equipment fabrication and installation completion deadline within an eight-month timeframe. Zeeco fabricated and supplied the following equipment:
120m Flare Stack
Integral Liquid Seal Drum in Stack Base
Buoyancy Type Purge Gas Seal Device

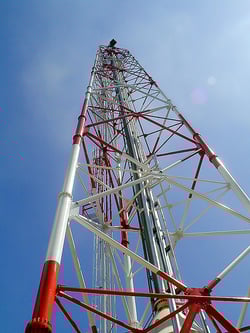

120m Derrick Support Structure for Flare Stack
Set of Ladders and Platforms
Retractable Davit System
QFSC Flare Tip with 4 Pilots
Front Flame Generator (FFG) Rack with Control Panel
Fixed Aircraft Warning Light System with Control Panel
Interconnecting Piping between the Flare Stack and FFG Rack
Although there were several last minute changes made during installation in the field, Zeeco was able to promptly work with installers to make the necessary changes required for proper installation. We were also able to help meet LG Chemicals start-up deadline by assisting with start-up issues due to pilot gas composition. The pilot’s fuel gas composition contained an inordinate amount of hydrogen, causing problems with pilot ignition. Zeeco personnel made the required adjustments and changes in the field to accommodate the varying fuel gas possibilities for the job. This resulted in a combustible gas/air mixture range, solving the pilot’s ignition issue.
